WatchBP Office ABI

Cardiovascular screening device Screening for Peripheral Arterial Disease (PAD) and Atrial Fibrillation (AF).

Лодыжечно-плечевой индекс (ABI)

Double arm measurement

Atrial Fibrillation (AF) detection

3 consecutive measurements

SPRINT algorithm

PC connection

Validated blood pressure monitors for patients with end-stage renal disease.

For use in Pregnancy and Pre-eclampsia

AFIB WatchBP AFIB распознает
мерцательную аритмию (AF) с высокой точностью
(чувствительность 98%,
специфичность 92%)

Features

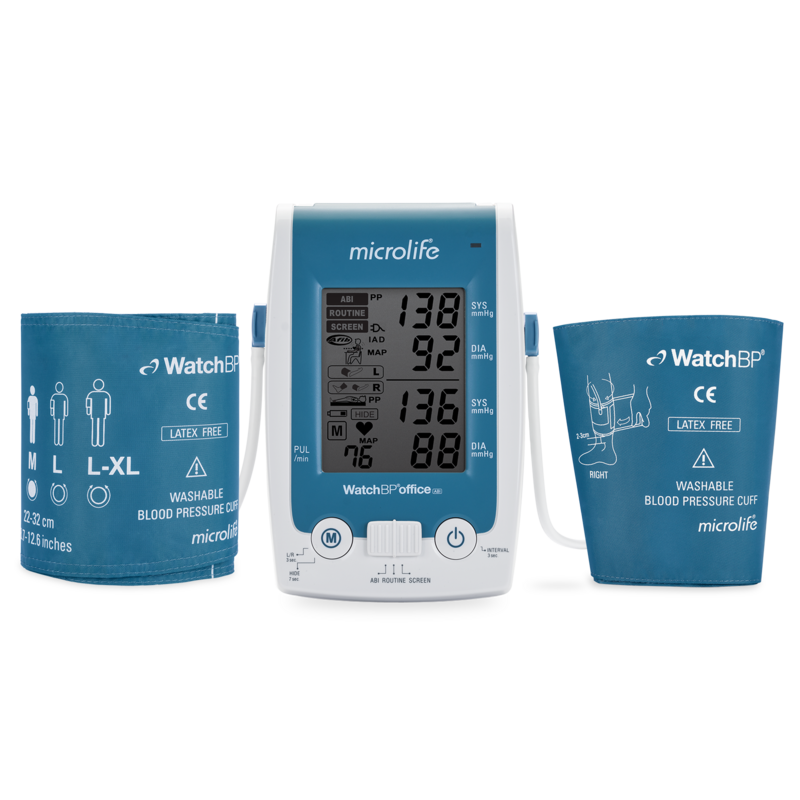

Dual-cuff blood pressure monitor with Atrial Fibrillation (AF) detection and Ankle-Brachial Index (ABI) function.

Fast, easy and accurate Ankle Brachial Index (ABI) assessment.
Atrial fibrillation (AF) detection.
Dual-cuff design for simultaneous measurement on both arms to assess the Inter-Arm-Difference (IAD).
The software of all WatchBP devices is user-friendly and allows easy data transfer and analysis. WatchBP software is free of charge and can be downloaded from our website to your PC.
This device also shows the measured Mean Arterial Pressure (MAP) and the Pulse Pressure (PP).

Conical shape ankle cuff

Conical shape for ABI assessment in special patient groups.

Mini-USB port

Transmit BP measurement data to PC via USB connectivity.

Rechargeable battery pack

After using the power adapter, the battery pack delivers up to 400~500 measurement cycles.

Automated office blood pressure measurement (AOBPM) device.

WatchBP Office AFIB allows an optional 5 min. countdown time before 3 measurements are automatically taken with one minute interval time. Similar to the method as is used in the SPRINT-trial.

Downloads

Инструкция WatchBP Office ABI PDF, (4.6 MB)

Video

OPERATION MODES

Mode	Measurements	Interval time	ABI assessment	AFIB detection	Double arm measurement
ABI	1	-		-	-
Routine	3	15" default 30"/45"/60"/5min selectable	-		-
Screen	3	15" default 30"/45"/60"/5min selectable	-

Accessories

2 x M-Cuff (22-32cm / 8.7-12.6") upper arm with 130cm airtube each.

2 x L-Cuff (32-42cm / 12.6-16.5") upper arm with 130cm airtube each.

1 x M-Cuff (22-32cm / 8.7-12.6") ankle with 200cm airtube.

Instruction Manual

Power Adapter

USB-Cable

Software CD
